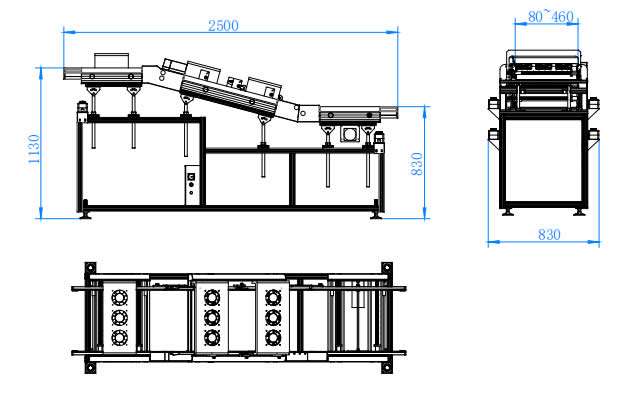

| Solder Outfeed Conveyor Dimension | ||||||||||||
 |
||||||||||||
|
||||||||||||
Solder Outfeed Conveyor
|
Wave Solder Inloading Conveyor Features : |
|
● Conveyor width adjustment using hand crank. |
|
● Free running concept, no flow control. |
|
● Flux protected by using 3 mm pinchain. |
|
● Sliding resistors on decline section. |
| ● CE certified. |
|
OPTIONS |
|
● Pinchian using 5mm pins. |
|
● Cool fans. |
|
● Cylinder stoper. |
|
● Electrical conveyor width adjustment. |
| ● Other options available on request. |
|
Solder Outfeed Conveyor Specification : |
|
|
Model |
MWN-460XL-2500 |
|
Transport height: |
Specify uopon order |
|
Transfer direction: |
Left to right |
|
Operation side: |
Front of the machine |
|
Fixed rail: |
Front of the machine |
|
Interface: |
SMEMA |
|
Conveyer concept: |
Metal Pinchain |
|
Belt speed: |
0.5-3m/min adjustable |
|
PCB edge support: |
5mm |
|
Power supply: |
230 VAC/50 Hz/1 Ph |
|
Power consumption: |
200 VA max |
|
Component Clearance: |
Top 30mm, bottom 60mm |
